JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Standard: | JIS F3410-1999 | Nominal Sizes: | 3-15mm |
|---|---|---|---|
| Type: | Type F | Permissible Load: | 29.7 To 147KN |
| Material: | Mild Steel, Stainless Steel C-Mn Steel Forging | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc. | ||
| Highlight: | Forging Steel Welded Ovel Eyeplate,JIS F 3410 Welded Ovel Eyeplate |
||
Product Description

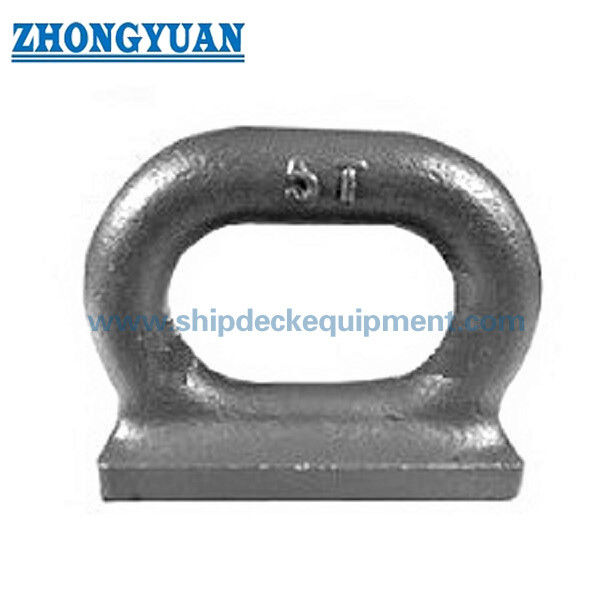

JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment
Description:
As an eye plate for ships that can be used when fixing structures such as rope terminals, shackles, pulleys, etc.
Main Technical Specification:
1.Standard: JIS F3410-1999,
2.Nominal Sizes: 3-15mm
3.Type: Type F,
4.Permissible Load: 29.7 to 147KN
5.Material: Mild Steel, Stainless Steel C-Mn Steel Forging;
6.The surface of the finished eyeplate is free from visible cracks and flaking.
7.Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer;
8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameter:
| Nominal size |
Permissible load KN |
d | L | R | L1 | B | T | h | r | r1 | r2 | Welding Leg f |
Weight(kg) |
| 3 | 29.4 | 28 | 85 | 25 | 130 | 60 | 15 | 13 | 18 | 12 | 25 | 7 | 2.44 |
| 5 | 49 | 34 | 100 | 28 | 150 | 70 | 15 | 20 | 20 | 15 | 25 | 9 | 3.88 |
| 7.5 | 73.5 | 42 | 115 | 30 | 180 | 100 | 20 | 25 | 25 | 20 | 25 | 11 | 7.5 |
| 10 | 98 | 50 | 135 | 32 | 210 | 120 | 20 | 28 | 30 | 25 | 25 | 13 | 11.7 |
| 15 | 147 | 60 | 160 | 34 | 250 | 140 | 27 | 36 | 36 | 30 | 27 | 10 | 20 |
Drawing of JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment
